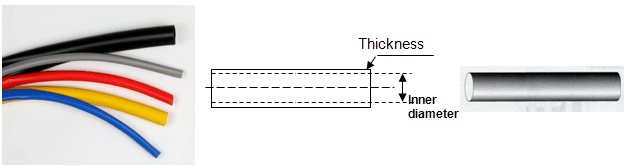

This is used for electric insulation, mechanical protection, and identification of wiring harness for automobiles and electric/electronic/communication devices.
|
| Material |
PVC(Common, heat-resistant) |
| Heat - Resistance |
30min/80¡É(Common),30min/135¡É(Heat-resistant) |
| Cold - Resistance |
30min/-40¡É |
| Regulation Substance |
The RoHS of three domestic automobile companies is satisfied. |
| Specific Features |
Low flammable and odorless |
| COLOR |
Various including black and yellow (custom-made) |
|
|
| |
 |
| |
|
|
Nominal
diameter
¥Õ |
PVC
(Common, soft) |
PVC
(Heat-resistant, hard) |
Inner
diameter
§® |
Thickness
§® |
Inner
diameter
§® |
Thickness
§® |
| 3 |
3.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
3.0(+0.4,-0.3) |
0.4(+0.15,-0.1) |
| 4 |
4.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
4.0(+0.4,-0.3) |
0.4(+0.15,-0.1) |
| 5 |
5.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
5.0(+0.4,-0.3) |
0.5(+0.15,-0.1) |
| 6 |
6.0
(+0.4 , -0.3) |
0.5
(+0.1 , -0.08) |
6.0(+0.4,-0.3) |
0.5(+0.15,-0.1) |
| 7 |
7.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
7.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 8 |
8.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
8.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 9 |
9.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
9.0
(+0.5,-0.4) |
0.7(+0.15,-0.1) |
| 10 |
10.0
(+0.6 , -0.4) |
0.5
(+0.1 , -0.08) |
10.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 12 |
12.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
12.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 13 |
13.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
13.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 14 |
14.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
14.0
(+0.5,-0.4) |
0.8(+0.15,-0.1) |
| 16 |
16.0
(+1.0 , -0.5) |
0.5
(+0.1 , -0.08) |
16.0
(+0.8,-0.5) |
0.8(+0.15,-0.1) |
| 18 |
18.0
(+1.0 , -1.0) |
0.5
(+0.1 , -0.08) |
18.0
(+0.8,-0.5) |
0.8(+0.15,-0.1) |
| 22 |
22.0
(+1.0 , -0.5) |
0.8
¡¾ 0.15 |
- |
- |
| 24 |
24.0
(+1.0 , -0.5) |
0.8
¡¾ 0.15 |
- |
- |
| 30 |
30.0
(+1.0 , -0.5) |
1.0
¡¾ 0.15 |
- |
- |
|
|
| * Thickness and inside diameter are adjustable. |
|
| |
| |
|
 |
|
|
