| We are manufacturing various kind of tube&hoses which have a strong resistance, heat-resistance, cold-resistance and chemical proof for the Automobile wiring and the others. |
| Material |
PP
, PA6 , PE |
| Heat - Resistance |
3000h/135¡É(PP),300h/150¡É(PA6) |
| Cold - Resistance |
24h/-40¡É |
| Regulation Substance |
The RoHS of three domestic automobile companies is satisfied. |
| Specific Features |
Low flammable and odorless |
| Color |
BLACK,
YELLOW <the others is available> |
|
|
| |
 |
| |
|
|

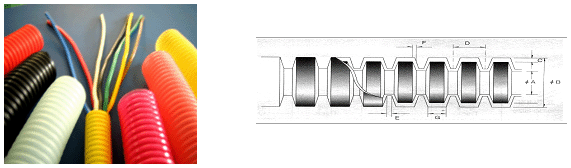

Nominal
diameter
¥Õ |
A |
B |
C |
D |
E |
F |
G |
Inner
diameter
§® |
Outer
diameter
§® |
Thickness |
APP.
§® |
APP.
§® |
APP.
§® |
APP.
§® |
| PP(§®) |
PA6(§®) |
| 5 |
5.0¡¾0.4 |
7.1¡¾0.4 |
0.25¡¾0.1 |
1.6 |
0.7 |
0.15 |
1.3 |
| 7 |
7.3¡¾0.4 |
10.7¡¾0.4 |
0.27¡¾0.1 |
2.1 |
0.6 |
0.1 |
1.9 |
| 9 |
9.1¡¾0.4 |
12.2¡¾0.4 |
0.27¡¾0.1 |
2.2 |
0.6 |
0.1 |
2 |
| 11 |
11.1¡¾0.4 |
14.5¡¾0.4 |
0.27¡¾0.1 |
2.5 |
0.6 |
0.2 |
2.1 |
| 12 |
12.8¡¾0.4 |
15.8¡¾0.4 |
0.27¡¾0.1 |
2.5 |
0.7 |
0.1 |
2.2 |
| 13 |
13.3¡¾0.4 |
17.5¡¾0.4 |
0.27¡¾0.1 |
2.8 |
0.7 |
0.3 |
2.3 |
| 14 |
14.5¡¾0.4 |
18.7¡¾0.4 |
0.27¡¾0.1 |
2.5 |
0.7 |
0.15 |
2.2 |
| 16 |
16.8¡¾0.4 |
21.4¡¾0.4 |
0.27¡¾0.1 |
2.7 |
0.7 |
0.15 |
2.4 |
| 19 |
19.2¡¾0.4 |
23.6¡¾0.4 |
0.27¡¾0.1 |
2.9 |
0.7 |
0.15 |
2.6 |
| 22 |
22.3¡¾0.4 |
27.4¡¾0.4 |
0.30¡¾0.1 |
3.3 |
0.8 |
0.2 |
2.9 |
| 24 |
24.2¡¾0.4 |
29.7¡¾0.4 |
0.30¡¾0.1 |
3.4 |
0.8 |
0.25 |
2.9 |
| 26 |
26.2¡¾0.4 |
31.6¡¾0.4 |
0.30¡¾0.1 |
3.5 |
0.9 |
0.2 |
3 |
| 28 |
28.2¡¾0.4 |
33.6¡¾0.4 |
0.30¡¾0.1 |
3.5 |
1.0 |
0.2 |
3.1 |
| 30 |
30.0¡¾0.4 |
35.0¡¾0.4 |
0.40¡¾0.1 |
3.7 |
1.0 |
0.3 |
3.1 |
| 32 |
32.7¡¾0.4 |
38.0¡¾0.4 |
0.40¡¾0.1 |
4.4 |
0.8 |
0.4 |
2.8 |
| 36 |
36.0¡¾0.5 |
42.4¡¾0.5 |
0.45¡¾0.15 |
3.7 |
1.0 |
0.3 |
3.1 |
| 40 |
40.0¡¾0.5 |
46.4¡¾0.5 |
0.50¡¾0.15 |
3.7 |
1.0 |
0.3 |
3.1 |
|
|
| 1. D, E, F, and G Reference / 2 Thickness is adjustable. |
|
| |
| |
|
 |
|
|
